BRUDER EXP-4 overland

PRICED FROM


*$81,700 AUD EX GST / $89,900 AUD INC GST

$62,200 USD / €58,000 EURO

*EXP-4 Overland. Pricing in USD and EURO is indicative only and is based on advertised exchange rates at point of publication - All payments made, must be equal to the AUD selling price at point of payment conversion. Price guideline does not include freight to your requested port or destination.

*Models shown may include optional extras at additional cost

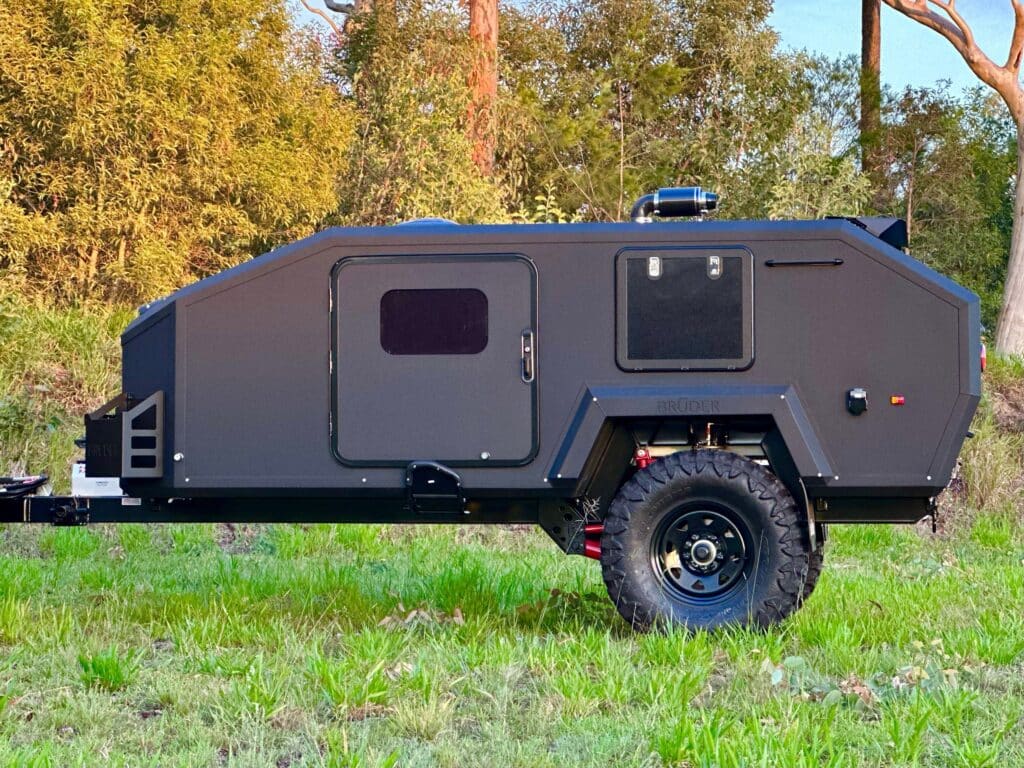

The Bruder EXP-4 Overland adventure trailer was created to deliver a compact, streamlined, next level off-road experience.

It takes you places no other camper trailer can.

Achieved through quality design, next-level engineering and extensive testing, the Bruder EXP-4 Overland is built on the Bruder patented suspension system.

Designed to meet the essential needs of the modern adventurer, The Bruder EXP-4 Overland  gives you confidence to handle the most difficult terrains with ease.

CONSTRUCTION

ENGINEERED CHASSIS

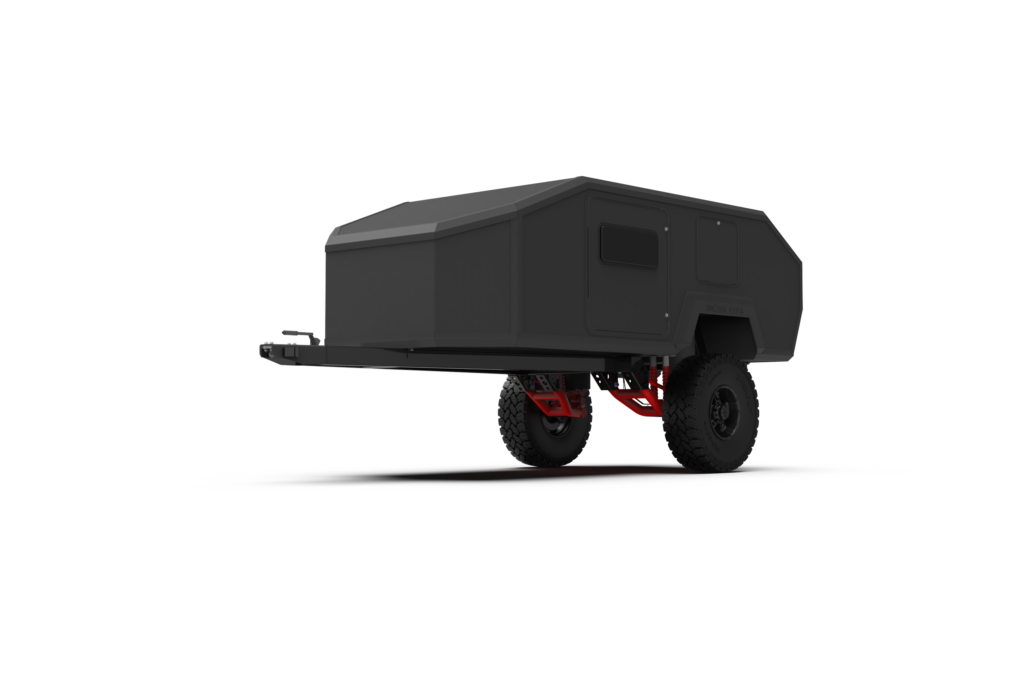

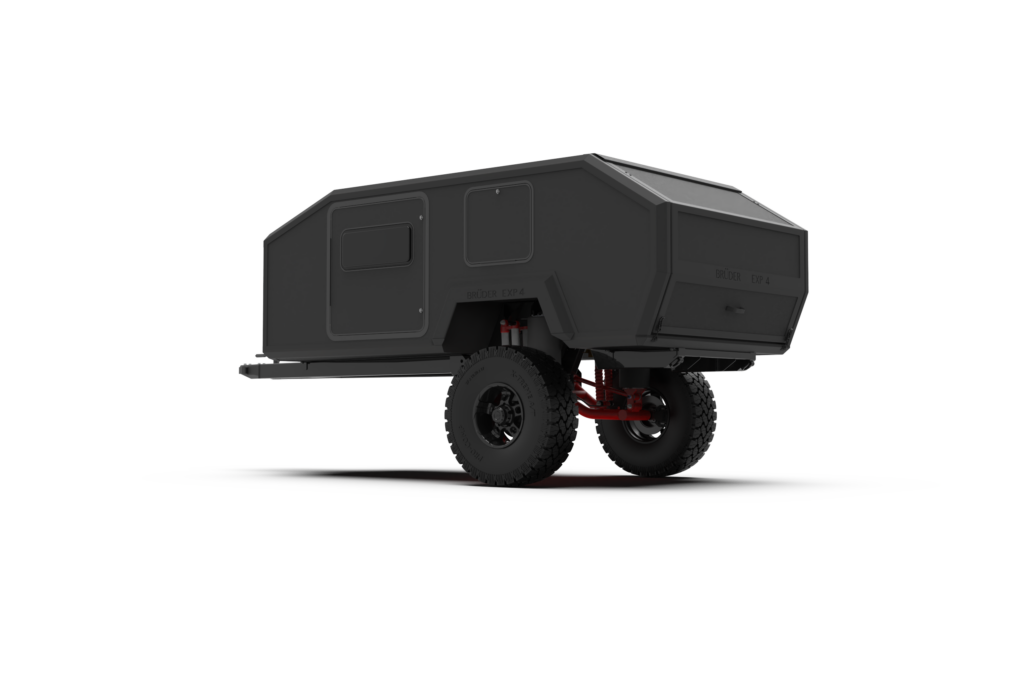

The Bruder engineered EXP-4 Overland offroad chassis is unique and immensely strong.

It’s airtight and completely sealed, with no openings for salt, sand or other debris to get caught in it.

The undercarriage features rear recovery points, with the option to add a rear  recovery winch, for the true adventurer.

PERFORMANCE

SUSPENSION

The patented Bruder airbag suspension system counteract’s steep side slopes on the move while off-roading, and easily level’s out uneven terrain for camping in moments.

For the perfect towing balance, the suspension can also calibrate its ride height to suit a wide range of tow vehicles.

Access and explore the locations that no one else can. Only a Bruder will get you there.

BUILT TOUGH

BODY

Engineered from the highest marine grade closed-cell, epoxy-bonded quad-weave fibreglass composite material up to 60mm thick.

Climate tested for durability in 50ºC (122ºF) ambient heat and down to -20ºC.

Safely secure almost anything to the roof of the EXP-4 Overland, with over 2 meters of useable space available depending on specification. Immense body strength and versatile racking options.

FITOUT

INTERIOR

Designed to create a huge sense of internal space, USB charging outlets and LED lights are all conveniently located, with large storage shelves.

The interior can be optioned to accommodate young children with an additional internal bunk.

A roof-top tent can also be optioned for either 2 or 4 to provide sleeping for up to six.

The EXP-4 Overland offers everything you need for a comfortable expedition.

Positive pressure

A positive pressure is kept
inside the EXP-4 to stop foreign
debris and dust ingress.

Bruder Chassis

Patented suspension
combined with class leading
chassis strength offers
unrivaled off-road ability.

Storage

Body and roof mounted
storage offers ample space
for your expedition.

EXP-4 Interior
Internal Fans

Option for internal fans on
your EXP-4 to create optimal
air-flow.

POWER OUTLETS

3x twin USB's, 3x cigarette
sockets and 2x 110V/240V
outlets are available
throughout your trailer.

Storage

Ample storage is available for
all of your clothing needs.

FITMENT

EXTERIOR

Manual or fully electric awnings can be fitted to provide you with much-needed shade and valuable living space. Add the fully enclosed annex with privacy walls to suit your chosen awning system.

Two large lockable storage areas with full body width storage capacity are perfect for longer items.

The roof is also free for additional storage, using roof-racks or roof bars. This allows a variety of rooftop tents to be fitted or items such as your surfboards, snowboards, kayaks.

KITCHEN

EXTERNAL LIVING

The roomy and versatile EXP-4 Overland kitchen extends over the full width and height of the body. The kitchen door doubles as a roof when open, covering you and the entire kitchen area

Easily accessible at the rear of the trailer, the kitchen is lightweight, extremely durable, waterproof, and easy to keep clean.

There is generous storage for food and pantry items along with space for all your cooking utensils, plates, and cutlery.

Ready to escape?

EXP-4 Overland

SPECIFICATIONS

PRICED FROM


$81,700 AUD EX GST / $89,900 AUD INC GST

*$65,000 USD / €65,000 EURO

TARE:950KG / 2094Lbs*
ATM:1850KG / 4078Lbs
AXLE Capacity:2600Kg / 5732lbs
BODY LENGTH:4027mm / 13.2ft
Total length:4995mm / 16.38ft
Body width:1963mm / 6.44ft
low height:1780mm / 5.84ft
max height:2080mm / 6.82Ft
Ground Clearance:861mm / 2.82ft

* Spec varies depending on options and versions chosen

Standard inclusions

chassis, suspension & body

  • 125x75x4mm main chassis rails with internal and external support brackets
  • Fully welded and sealed laser cut sections
  • Hydraulic disc brakes
  • 16” Steel wheels with mud terrain tyres
  • Offroad coupling
  • Rear winch compatibility and two rear tow recovery points
  • Bruder designed air suspension system with four mono-tube remote-canister shock absorbers
  • Engineered epoxy-bonded closed cell composite body construction with wall thickness paired to provide maximum strength, durability and insulation
  • Engineered epoxy-bonded closed cell composite body construction with wall thickness paired to provide maximum strength, durability and insulation
  • Air compressor for suspension adjustment
  • Suspension adjustment with wireless fob control
  • Inherent strength for roof mounting or heavy snow loads
  • Precision geometry throughout travel range

Exterior

  • 2 x large connected lockable storage areas
  • Twin LED taillights and sidelights
  • Bruder mud flaps
  • 4.5kg gas bottle holder
  • Body mounted LED camping light (with yellow & white light) on LHS
  • LED lights in service hatches
  • Double filtered carbon fibre housing positive pressurising system

interior

  • Queen size mattress
  • Interior storage & shelving
  • LED recessed lighting
  • Marine grade soft touch roof liner
  • Marine grade carpet wall liner
  • 2 x windows with reflective blinds and insect window mesh
  • 2 x twin USB/12V outlets
  • Portable gas hot water system

kitchen

  • Internal 80L/21.1gal compressor fridge
  • Large composite kitchen
  • Stainless steel basin
  • Soft close drawers
  • Mesh screens for kitchen shelves
  • Water pressuring pump and adjustable tap
  • Orange/white LED kitchen lighting
  • In-body 100L/26.4gal water tank
  • AC power outlet
  • Twin USB and 12V outlet
  • Power management display

electrical

  • External power inlet with 30A battery charger
  • DC-DC 30A charger
  • 100Ah lithium battery
  • 200W fixed solar panels with MPPT solar charger
  • Anderson plug 12V vehicle charging cable
  • 1000w Inverter charger

optional extras

chassis & suspension

  • Stud pattern change

underbody storage

  • Chassis mounted spare wheel holder and wheel
  • Additional gravity fed chassis-mounted 100L/26.4gal water tank with bash plate
  • Remote water pick up

interior

  • Internal bunk for young children
  • Internal storage shelf with cargo net
  • Fly screens to cabin doors
  • Mesh screens for internal shelving

Exterior roof

  • Platform rack
  • 2 person rooftop tent
  • 4 person rooftop tent
  • Roof mounted spare wheel

Exterior body

  • 180º Free standing awning
  • Annexe kit to suit 3m awning
  • Annexe walls only to suit 180º awning
  • Annexe to suit rear kitchen hatch including flooring
  • Shower tent
  • Pins for recovery tracks
  • Remote water pick up
  • Rear hatch privacy wall

Exterior storage

  • Additional gas bottle holder
  • Twin jerry can holder
  • Rotopax fuel & dry storage cell

electrical

  • 200Ah lithium battery upgrade
  • 2000W inverter charger including cabin mounted AC outlet
  • Three speed adjustable fan
  • Internal adjustable reading lights
  • Twin rearvision camera with monitoring screen for vehicle
  • 240V 2.2KVA generator
  • 12V solar input with additional MPPT
  • 300W Bruder portable solar blanket

appliances

  • BBQ
  • Portable induction cooktop
  • TV, mount, aerial and additional 12V power outlet
  • 240V microwave oven
  • Replace front opening fridge with 65L/17.2gal drawer fridge
  • Replace 65L/17.2gal front opening fridge with 80L/21.1gal front opening fridge
  • Rear recovery winch
  • MaxTrax mounted on rear hatch
  • Tyre inflation kit

miscellaneous

  • Portable toilet
  • Stone guard protection system

PAcks

Family pack - $11,150 Aud

  • Roof cross bars x 3
  • 180º Free standing awning
  • 2 Person rooftop tent
  • BBQ with mounting point

RECOVERY PACK - $4,750 aud

  • Recovery tracks
  • Winch
  • Twin compressor upgrade + air tank + tyre inflation/deflation kit
  • Bruder recovery kit

adventure pack - $9,500 aud

  • Remote water pick up
  • Twin compressor upgrade + air tank + tyre inflation/deflation kit
  • Platform rack
  • 180º Free standing awning
  • Twin jerry can holders

electrical pack- $9,500 AUD

  • Additional 400w solar panel & additional MPPT
  • Upgrade to 200ah lithium battery
  • 2000w inverter
  • Portable induction cooktop

Due to the nature of manufacturing any advertised weights and figures may change from the current stated and advertised amounts. Pricing and weights on all advertised details are current at time of publication but may alter at any time forthwith. Any photographs are indicative only. Changes may be made during the development. Fittings and specifications are subject to change without notice. Fittings and finishes are subject to availability and vendor discretion. The information contained herein is believed to be correct but is not guaranteed. Prospective purchasers should make and must rely on their own enquiries. This brochure is a guide only and does not constitute an offer or contract.
