The EXP-7
sleeps
2+4PT | 2+2GT
solar
1250w
battery
10 kW
WATER
280L | 74GAL
meet

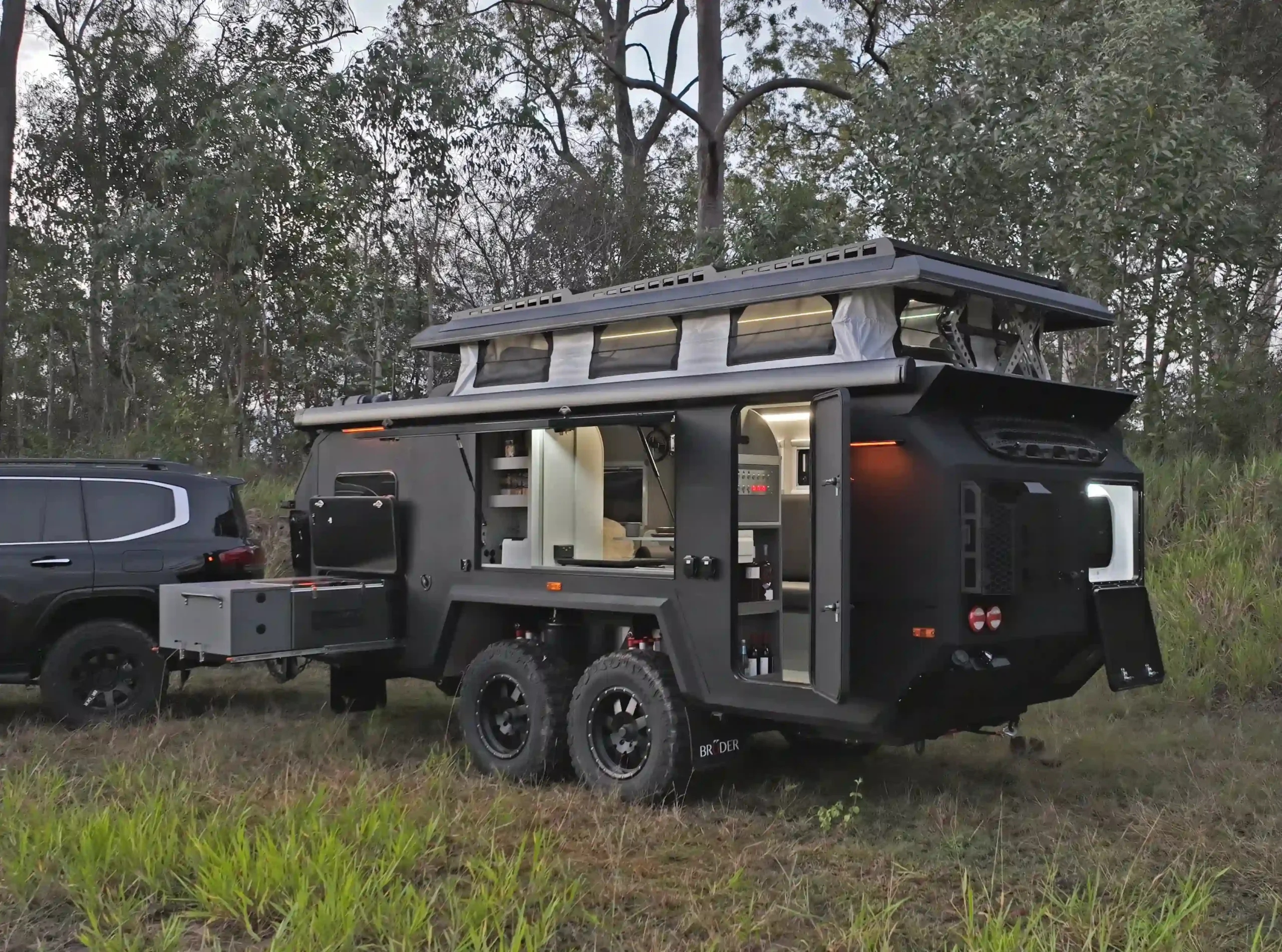

the exp-7
Embark on an adventure with the ultimate hybrid expedition trailer. Featuring a unique indoor/outdoor kitchen combination, the EXP-7 allows you to seamlessly connect with the outdoors. Its unique double-door system and external features provide a true 360-degree camping experience, far surpassing traditional off-road caravans. Available in both pop-top (PT) and hard-top grand tourer (GT) models, the deliberately sleek design allows this off–road camper trailer to navigate the tightest and roughest tracks with ease. At its core, the EXP-7 is equipped with a 48V electrical system offering unparalleled off-grid capability, convenience, and style.
Please select your region for pricing:
PRICE FROM $201,000USD
EXPERIENCE TRUE HYBRID LIVING
With its innovative indoor/outdoor kitchen, the EXP-7 offers the perfect blend of indoor luxury and outdoor adventure, allowing you to enjoy the best of both worlds. As a premier Australian made off road hybrid caravan, it provides a seamless transition between climate-controlled comfort and the rugged environment. Unique to Bruder, the double-door system adds exceptional usability and function to your off-grid living experience.
BRUDER SUSPENSION
Calibrate the ride height of your offroad trailer to suit any tow vehicle and achieve perfect levelling on virtually any slope. As one of best–off road caravan in its class, the EXP-7 offers nearly three times more usable independent suspension travel than its nearest competition. This heavy-duty system is engineered for more than just comfort; it provides unmatched mission-critical redundancy. It can raise any wheel individually, allowing this off–road camper trailer to be towed with three or even just two wheels, front or rear, a backup system ensuring that the EXP-7 remains unstoppable.
EASY TOWING
The EXP-7 offers an easy towing experience that sets a new standard for off road travel trailers. Whether you are navigating winding mountain roads or tackling rugged terrain, our innovative chassis and aerodynamic design ensure each journey is effortless.
As a superior offroad trailer, the EXP-7 features up to 90-degree turning angles, allowing you to conquer tight corners and tricky spots that stop other offroad caravans in their tracks. Engineered for total confidence, this off-road camper trailer provides the stability and agility needed for 4×4 off road exploration. Experience the freedom of towing a luxury off road caravan that remains poised and manageable, no matter how challenging the landscape becomes.
specifications
EXP-7 PT
| TARE: | 2700kg / 5950lbs* |
| ATM: | 3500kg / 7716lbs |
| AXLE Capacity: | 5200kg / 11,464lbs |
| BODY LENGTH: | 5760mm / 18.9ft |
| Total length: | 6995mm / 22.9ft |
| Body width: | 1915mm / 6.28ft |
| low height: | 2299mm / 7.54ft |
| max height: | 2599mm / 8.5ft |
| Ground Clearance: | 650mm / 2.13ft |
* Weight fluctuates up/down depending on options and build selected. Height dimensions shown are based on 33″ tyres.
EXP-7 GT
| TARE: | 2700kg / 5950lbs* |
| ATM: | 3500kg / 7716lbs |
| AXLE Capacity: | 5200kg / 11,464lbs |
| BODY LENGTH: | 5760mm / 18.9ft |
| Total length: | 6995mm / 22.9ft |
| Body width: | 1915mm / 6.28ft |
| low height: | 2534mm / 8.31ft |
| max height: | 2834mm / 9.29ft |
| Ground Clearance: | 650mm / 2.13ft |
* Weight fluctuates up/down depending on options and build selected. Height dimensions shown are based on 33″ tyres.
Standard inclusions
- 125x75x4mm main chassis rails with internal and external support brackets
- Fully welded and sealed laser cut sections
- Vented hydraulic disc brakes
- 18” alloy wheels with 305/60R18 mud terrain tyres (x5)
- Offroad coupling
- Rear winch compatibility and two rear tow recovery points
- Patented designed air suspension system
- Eight mono-tube remote-canister shock absorbers
- Engineered epoxy-bonded closed cell composite body construction with wall thickness paired to provide maximum strength, durability and insulation
- Offroad adjustable and removable jockey wheel
- 200L/52.8gal water tank located in-body
- 80L/21.1gal grey water tank with sullage hose
- All waterlines run internally to prevent heating and freezing
- Water pump pressuriser
- Water filter
- Internal and external hot/cold showers
- Bathroom with vanity and composting toilet
- 10.8kWh lithium battery bank
- 3000W inverter
- 1245W of roof mounted solar panels
- 2 x 5m electronically controlled side awning
- 120 Amp AC charger
- 10 Amp (at 48V) DC-DC charger
- MPPT solar charger
- Touch screen power management system
- 3 x 12V and twin USB outlets
- 6 x AC outlets
- Internal and external orange/white switchable LED lighting
- Storage compartment lights
- 12V anderson outler
- External TV mount and 12V power and aerial connection
- Auto levelling system
- Portable dual burner induction cooktop
- Fully filtered plumbing system
- Stainless kitchen sink with hot and cold water
- External 57L/15gal fridge-freezer in slide-out, including drawers and storage bin
- Orange/white LED strip lighting
- 2 x Internal fans
- Reverse cycle air-conditioning
- Full sized queen bed (1530mm x 2030mm) with LED strip lighting and storage/electrical charging ports beside bed
- Internal 12V HD smart television and external antenna
- Marine grade stain and water resistant flooring
- Internal 136L/35.9gal fridge freezer and easy access to the kitchen and pantry
- Access to kitchen via premium roller door
- Cupboards for storage located under bed, on walls, beside bed head
- Large hanging closet/wardrobe located at the rear
- Hydronic diesel powered internal heating and hot water
- Fire extinguisher
- Large external through boot with LED light
- Triple filtered dust reduction pressurisation ststem
- Premium double layered tinted windows with block-out blinds and in-built mesh
- Grab rails to entry doors
- Nitto fitting for tyre inflation
- Outdoor table mount
- Retractable fly screens to internal kitchen
optional extras
- 18” alloy wheels with 305/60R18 tyres
- 18” alloy wheels with 305/70R18 tyres
- 18” alloy wheels with 37/12.50R18 tyres
- Stud pattern change
- Leather sofa with arm rests
- Mesh side screen for child bunks
- Additional 80L / 21.gal water tank with remote water pickup
- Swap composting toilet for cassette toilet
- Additional 4.8kWh lithium battery (15.6kWh total)
- Twin rear vision camera with monitoring screen for vehicle
- External 240V power outlet
- Provision for Starlink
- 240V 2.2KVA generator
- 2L front loading washing machine
- 240V microwave oven
- Sound system (four additional speakers)
Due to the nature of manufacturing any advertised weights and figures may change from the current stated and advertised amounts. Pricing and weights on all advertised details are current at time of publication but may alter at any time forthwith. Any photographs are indicative only. Changes may be made during the development. Fittings and specifications are subject to change without notice. Fittings and finishes are subject to availability and vendor discretion. The information contained herein is believed to be correct but is not guaranteed. Prospective purchasers should make and must rely on their own enquiries. This brochure is a guide only and does not constitute an offer or contract.
